What Do the Spring Colors Mean in a Pilates Reformer?

The springs are the true heart of any Pilates Reformer. They provide the essential variable resistance required for everything from deep muscle rehabilitation to high-intensity athletic conditioning. However, for fitness equipment distributors, studio owners, and practitioners, understanding the technical specifications behind the color-coded rings is crucial for ensuring safety, equipment longevity, and a premium user experience.

As a professional manufacturer of Pilates equipment, we engineer our reformer springs with precise wire diameters, outer diameters, and tension curves. Here is the definitive guide to what the spring colors mean, backed by our factory's rigorous testing data.

The Core Data: Reformer Spring Specifications

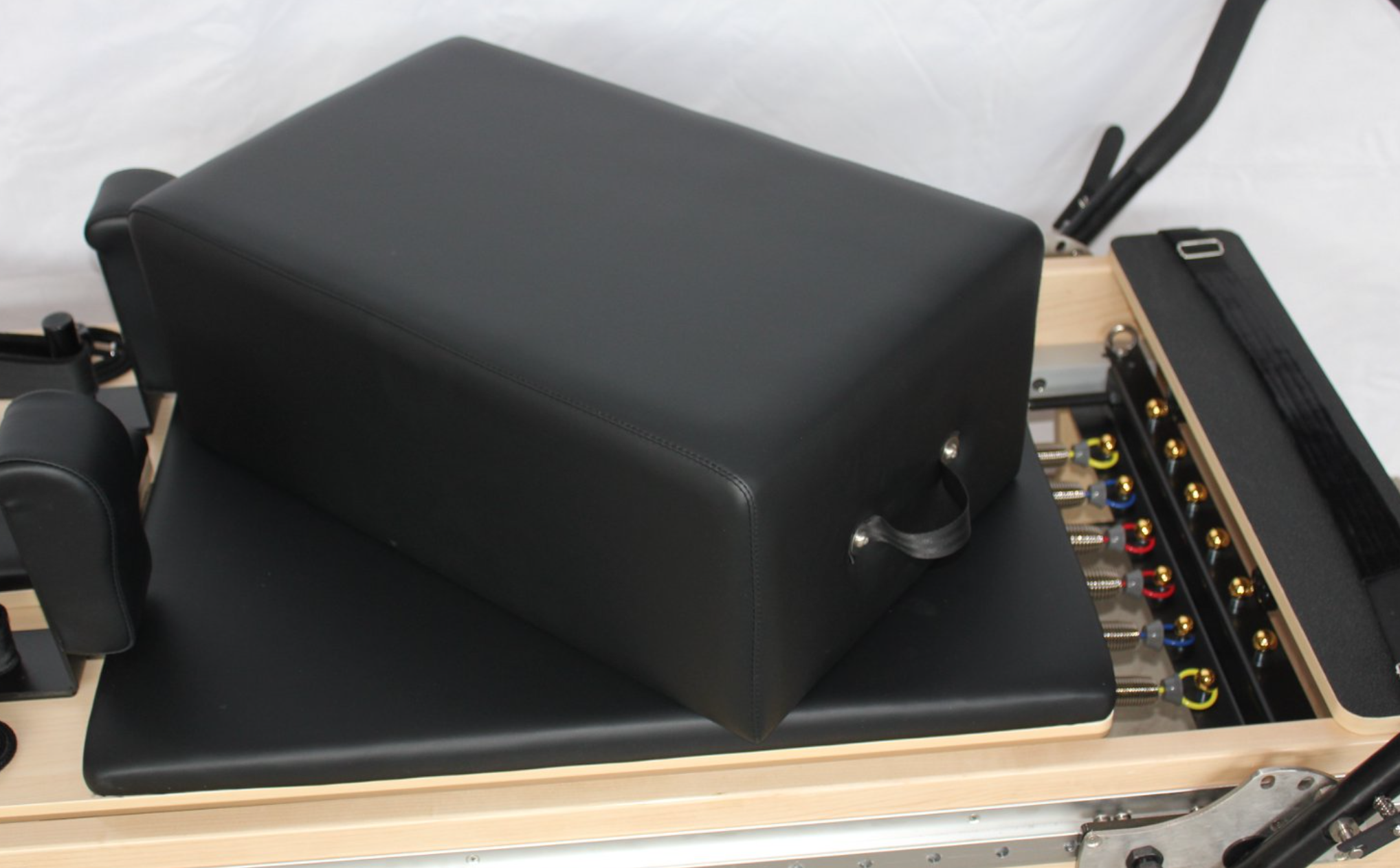

Our standard commercial-grade Pilates Reformer is equipped with a color-coded spring system. All reformer springs share a consistent Free Length of 470mm, but their internal mechanics differ significantly to provide distinct resistance profiles.

Here is the precise technical breakdown of each spring color:

🔴 Red Spring: Heavy Resistance (Power & Core)

The red spring provides the highest level of resistance. It is structurally the most robust, designed for lower-body work (like footwork) and heavy core stabilization exercises.

• Wire Diameter: 2.8mm
• Outer Diameter: 30.5mm
• Initial Tension: 3.16 KG (7.03 lb)
• Mid-Stretch Tension: 12.9 KG (27.38 lb)
• Maximum Tension: 27.8 KG (61.2 lb)

🟢 Green Spring: Medium Resistance (Balance & Integration)

The green spring is the versatile workhorse of the reformer. It offers a moderate resistance that is ideal for a wide range of movements, including full-body integration and intermediate leg work.

• Wire Diameter: 2.3mm
• Outer Diameter: 27.6mm
• Initial Tension: 2.24 KG (4.98 lb)
• Mid-Stretch Tension: 5.47 KG (12.03 lb)
• Maximum Tension: 14.5 KG (31.9 lb)

🟡 Yellow Spring: Light Resistance (Rehab & Upper Body)

The yellow spring has the thinnest wire diameter, providing gentle, highly controlled resistance. It is heavily utilized for arm work, rotator cuff exercises, and delicate rehabilitation protocols where smooth, low-impact tension is mandatory.

• Wire Diameter: 2mm
• Outer Diameter: 24.5mm
• Initial Tension: 1.58 KG (3.72 lb)
• Mid-Stretch Tension: 3.72 KG (8.19 lb)
• Maximum Tension: 8.4 KG (18.5 lb)

Beyond the Colors: Manufacturing Quality & Safety

Knowing the resistance is only half the equation for commercial buyers. The true value of a reformer spring lies in its manufacturing integrity.

Precision Engineering The relationship between the wire diameter and the outer diameter is precisely calculated in our production lines. This specific ratio ensures that the tension curve remains smooth from the "Initial" stretch all the way to the "Maximum" limit, preventing the jerky, uneven resistance found in inferior equipment.

Durability for Commercial Studios In a high-traffic Pilates studio, springs are stretched hundreds of times a day. Our springs are manufactured using high-grade, fatigue-resistant steel, ensuring that the maximum tension (e.g., the 27.8 KG on the Red Spring) remains consistent without permanent deformation over prolonged commercial use.

Safety & Maintenance Advice for Studio Owners To maintain peak performance and absolute client safety, we recommend that commercial studio operators visually inspect the springs monthly for any gaps in the coils when at rest. As a general factory guideline, reformer springs in a commercial setting should be replaced every 12 to 24 months, depending on studio traffic, to prevent metal fatigue.

OEM & Custom Tensions Because we control the manufacturing process from raw wire to finished product, we can adjust these parameters. If your brand requires a unique color-coding system, a specific mid-stretch tension profile, or custom lengths, our engineering team can accommodate precise OEM specifications.
