Pilates Reformer Machine Size: The Ultimate Guide for Studio Planning & Logistics

Buying equipment blindly without understanding spatial requirements can lead to cramped studios or massively inflated freight bills. As a direct manufacturer of premium commercial Pilates equipment, we help B2B buyers calculate their exact spatial and logistical needs every day.

Here is our ultimate guide to reformer dimensions, studio floor planning, and supply chain logistics.

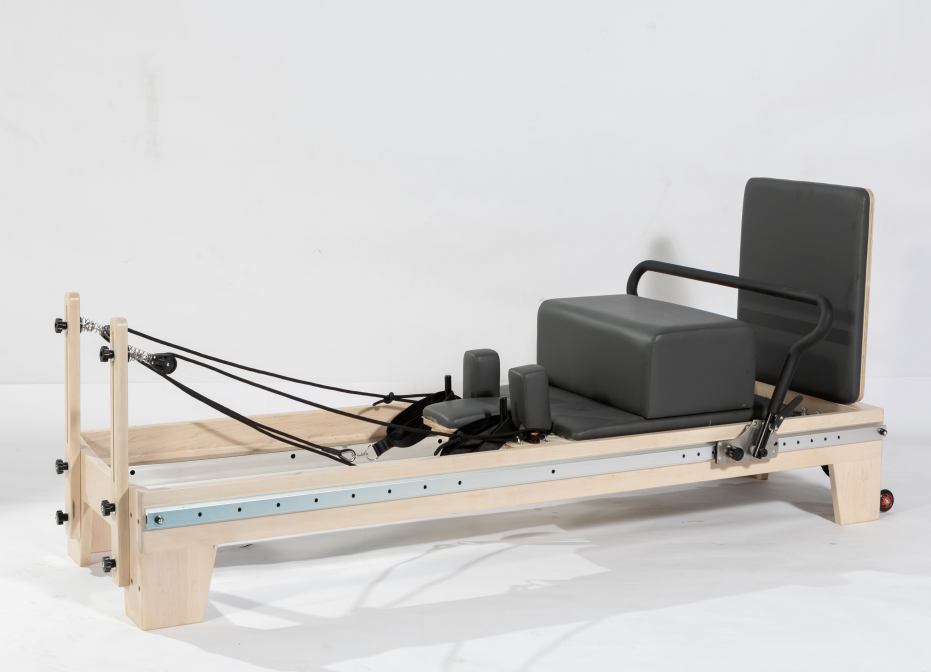

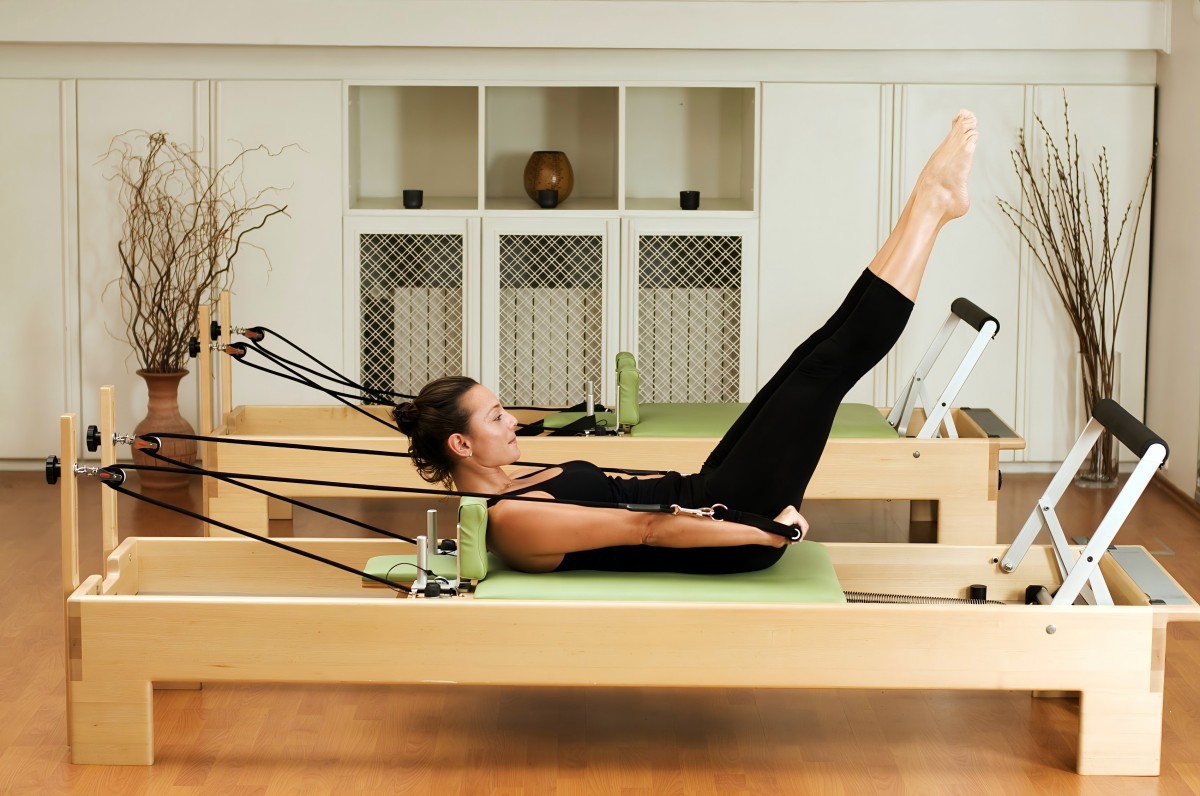

1. Standard Commercial Reformer Dimensions

For high-traffic boutique studios, the standard commercial reformer is the baseline. While measurements vary slightly depending on the frame material (wood vs. aluminum), you should plan for the following industry-standard dimensions:

• Length: 230cm to 240cm (Approx. 90 to 94 inches). This length ensures the carriage has enough track to accommodate taller clients without bottoming out.

• Width: 68cm to 70cm (Approx. 26 to 27 inches).

• Bed Height: 35cm to 40cm (Approx. 14 to 16 inches).

  • Manufacturer Insight: This specific height is ergonomically critical. It is high enough for elderly or rehab clients to sit down and stand up safely without squatting to the floor, yet perfectly positioned so instructors do not have to constantly bend over and strain their lower backs when adjusting springs or correcting form.

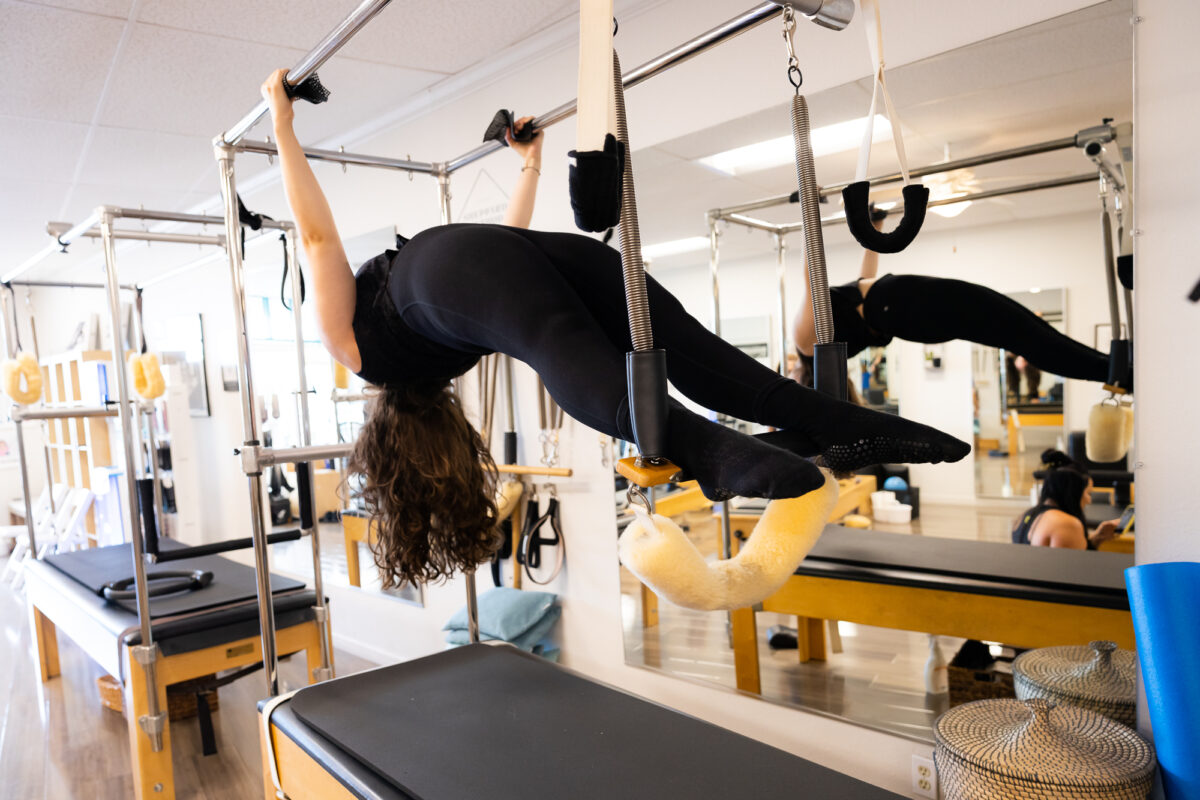

2. Cadillac and Tower Combos: The Height Factor

If you are upgrading to a Half-Tower or a 3-in-1 Cadillac Combo for private sessions, the footprint (length and width) remains largely identical to a standard reformer. However, the vertical dimensions change drastically.

• Height with Canopy/Tower: 200cm to 215cm (Approx. 78 to 85 inches).

• Ceiling Clearance Warning: Before ordering full Cadillacs, you must measure your studio's ceiling height. We strictly recommend a minimum ceiling clearance of 2.5 meters (8.2 feet). This ensures that when a client is performing overhead trapeze work, they will not hit the ceiling.

3. Foldable Home Reformers: The Space-Saving Solution

For B2B distributors targeting the residential market, the standard Pilates reformer machine size is often too large for apartments. This is where foldable models shine.

• Unfolded Size: ~210cm x 60cm (Maintains a functional glide length).

• Folded Size: Condenses to roughly 110cm in length.

• Commercial Value: For homeowners, it easily rolls into a closet. For distributors, it massively reduces packaging dimensions, directly increasing your profit margins (more on this below).

4. Studio Floor Planning: The "Active Space" Rule

A common mistake studio owners make is dividing their total room square footage by the physical dimensions of the machine. This is a recipe for disaster.

You must account for the "Active Space." During a class, clients will extend their arms and legs outside the carriage (e.g., pulling straps while doing arm circles). Instructors also need room to walk between machines safely.

• The Golden Rule: Always leave a minimum of 60cm (2 feet) of empty clearance on all four sides of every reformer. When drafting your floor plan, treat each machine as if it occupies a 3.5m x 1.9m block.

5. How Size Impacts B2B Shipping Costs (CBM)

If you are importing equipment directly, the physical size of the machine translates directly into your shipping volume, measured in Cubic Meters (CBM). Ocean freight is charged by volume, not just weight.

• Standard Wood Reformer (Crated): ~1.0 CBM.

• Full Cadillac Combo (Crated): ~1.8 CBM.

• Foldable Reformer (Carton): ~0.3 to 0.4 CBM.

• Logistics Strategy: By working with an experienced manufacturer, you can optimize your container load. For example, in a 40HQ container, we can strategically mix standard reformers and space-saving foldable units to maximize every inch of space, drastically lowering your landed cost per unit.

6. OEM Customization: Modifying Dimensions for Your Market

When you buy from retail brands, you are stuck with their standard sizes. When you source directly from the factory floor, dimensions become flexible.

Are you opening a clinical rehab center and need the legs raised to 50cm for wheelchair accessibility? Are you serving a market with taller, larger demographics and need a wider carriage? A true manufacturer can engineer and customize these dimensions to perfectly fit your specific business model.

Optimize Your Studio and Supply Chain

Understanding the Pilates reformer machine size is the first step in building a profitable studio and a highly efficient supply chain.

Operating directly from the Tianjin port hub, we manufacture and export premium, commercial-grade Pilates equipment worldwide. We don't just build machines; we help you optimize your container loading and studio floor plans.

Ready to start planning? Send an email to Naisen and our Tianjin export team today. Request our detailed specification sheets, let us calculate your exact shipping CBM, and secure your direct factory wholesale quote!
